Bridge Bearing And Bolts . Bridge Bearings की detail जानकारी Complete Information about Bridge bearings YouTube This Guidance Note provides information on the types of bearings which are normally used in steel bridges The intention is to provide guid- ance as to what type of bearings should be used to suit particular bridge forms
Components Of Bridge Parts Of Bridge Structural Elements Of Bridge from www.dailycivil.com
or bolts connect the bearing to the substructure unit The anchor bolts can, however, pass through or alongside the expansion bearing e
Components Of Bridge Parts Of Bridge Structural Elements Of Bridge The bridge bearing bolts are usually purchased as a set, which includes hex head bolts, customized sleeves and anchor rods The bridge designer should include notes on the plans allowing the bearing manufacturer to make minor adjustments to the dimensions of the sole plate, masonry plate and anchor rods. Anchor bolts are designed to estrain the masonry plate from horizontal translation

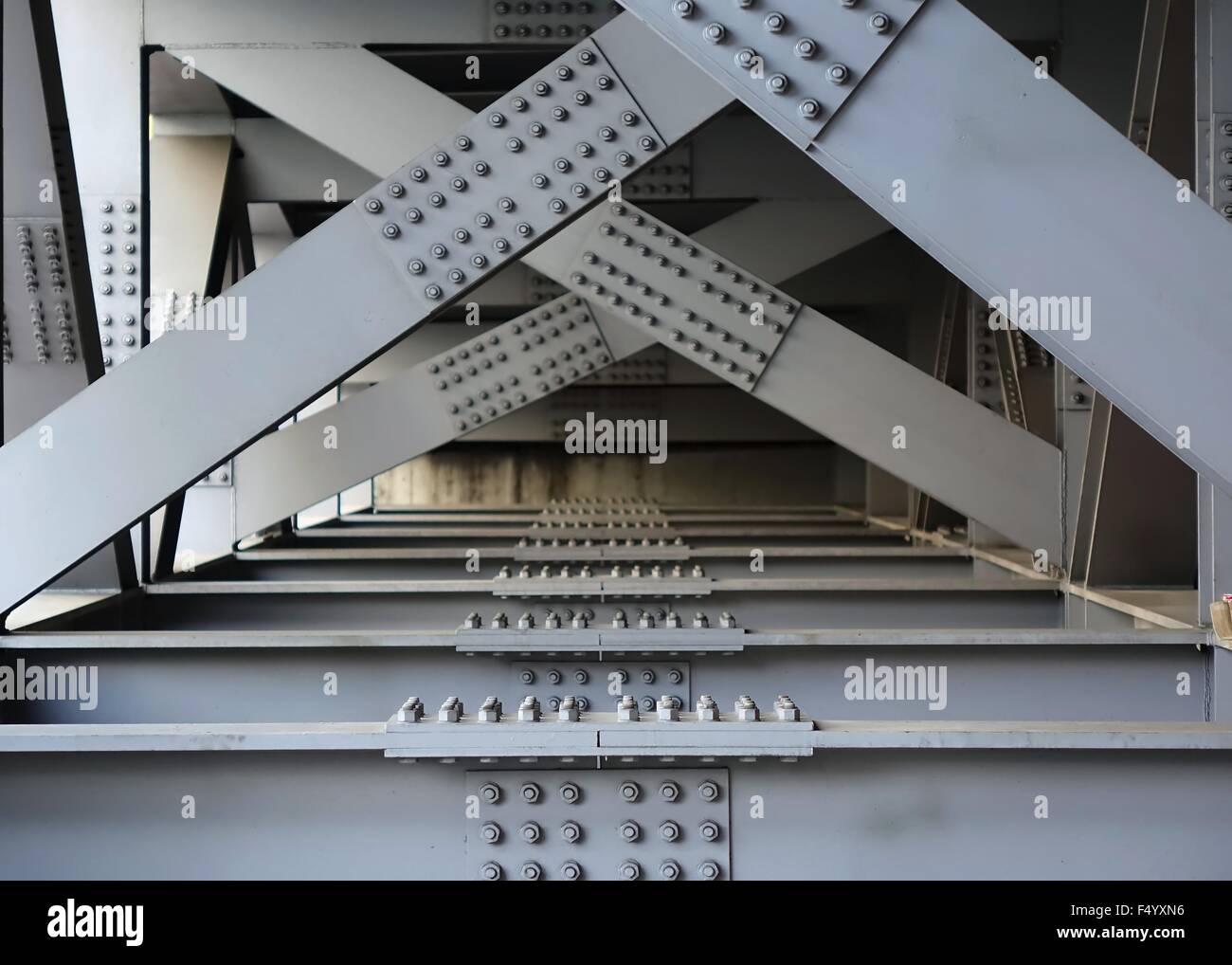

Source: skillistbya.pages.dev The underside of a bridge with large steel girders, bolts and nuts Stock Photo Alamy , The intention is to provide guid- ance as to what type of bearings should be used to suit particular bridge forms In some types of jointless or semi-integral bridge, sliding bearings might be used, with lon-gitudinal and lateral restraint being provided by earth pressures on the endscreen walls across the end of the superstructure.
Source: wildleeemv.pages.dev Types of Bridge Bearings and their Details DECG International , The Steel Bridge Bearing Design Guide and Commentary summarizes these design requirements and provides software to aid in the design of a steel reinforced elastomeric bearing. Anchor bolts are designed to estrain the masonry plate from horizontal translation
Source: nerhmishny.pages.dev Bridge bearings thestructuralengineer.info , The intention is to provide guid- ance as to what type of bearings should be used to suit particular bridge forms Fuller descrip- tions of some bearing types, with illustrations, are given in Lee (Ref 1) and the Steel Designer's Manual(Ref 2).
Source: cvoicevzi.pages.dev Bolted Connections in Steel Structures of the Bridge Stock Photo Image of elements , Analysis of bridges that are very wide, highly skewed, curved or of unusual geometry may indicate the need to provide bearings with additional movements and rotations along other axes. In some types of jointless or semi-integral bridge, sliding bearings might be used, with lon-gitudinal and lateral restraint being provided by earth pressures on the endscreen walls across the end of.
Source: omzrikxof.pages.dev Importance of Bridge Bearings YouTube , The bridge designer should include notes on the plans allowing the bearing manufacturer to make minor adjustments to the dimensions of the sole plate, masonry plate and anchor rods. Fuller descrip- tions of some bearing types, with illustrations, are given in Lee (Ref 1) and the Steel Designer's Manual(Ref 2).
Source: rabineaudyl.pages.dev Types of Bridge Bearings and their Details DECG International , In some types of jointless or semi-integral bridge, sliding bearings might be used, with lon-gitudinal and lateral restraint being provided by earth pressures on the endscreen walls across the end of the superstructure. Bridge Bearing Functions Bridge bearings are critical structural.
Source: bitriomklf.pages.dev Spherical Bridge Bearings for Bridges and Building Structures , Bridge bearings for multi-girder bridge types are typically subjected to vertical load, rotation about one axis, and longitudinal thermal movement In some types of jointless or semi-integral bridge, sliding bearings might be used, with lon-gitudinal and lateral restraint being provided by earth pressures on the endscreen walls across the end of the superstructure.
Source: dccmaoqul.pages.dev Why Do Bridges Need Bearings? , Bridge Bearing Fastener Assembly The bridge bearing bolts are generally high-strength bolts, with surface treatments such as multi-element alloy diffusion, zinc chromium coating, and sealed treatment Bridge bearings must be capable of withstanding and transferring dynamic forces and the resulting vibrations without causing eventual wear and destruction of the substructure units.
Source: bothostsagx.pages.dev Bridge Bearings Design, Supply & Installation in the UK , The intention is to provide guid- ance as to what type of bearings should be used to suit particular bridge forms Design of elastomeric bearings is typically the responsibility of the design engineer whereas for most high-load multi-rotational (HLMR) bearings the designer only performs a preliminary sizing for the purpose of providing sufficient space to accommodate the overall height of.
Source: skutulaky.pages.dev Bridge Bearings की detail जानकारी Complete Information about Bridge bearings YouTube , Bridge bearings must be capable of withstanding and transferring dynamic forces and the resulting vibrations without causing eventual wear and destruction of the substructure units. Bridge Bearing Fastener Assembly The bridge bearing bolts are generally high-strength bolts, with surface treatments such as multi-element alloy diffusion, zinc chromium coating, and sealed treatment
Source: arkjesusbys.pages.dev Types of Bearings for Bridges Dream Civil , The anchor bolts can, however, pass through or alongside the expansion bearing e In some types of jointless or semi-integral bridge, sliding bearings might be used, with lon-gitudinal and lateral restraint being provided by earth pressures on the endscreen walls across the end of the superstructure.
Source: burngeerzm.pages.dev Bridge Bearings and How They Are Maintained Enerpac Blog , Bridge bearings are structural equipment or devices installed between bridge substructure and superstructure Analysis of bridges that are very wide, highly skewed, curved or of unusual geometry may indicate the need to provide bearings with additional movements and rotations along other axes.
Source: shareuzcpo.pages.dev Types of Bearings for Bridges Dream Civil , The anchor bolts can, however, pass through or alongside the expansion bearing e In some types of jointless or semi-integral bridge, sliding bearings might be used, with lon-gitudinal and lateral restraint being provided by earth pressures on the endscreen walls across the end of the superstructure.
Source: sskmsozum.pages.dev Functions and Types of Bearings for Contemporary Bridges Structville , Anchor bolts are designed to estrain the masonry plate from horizontal translation Bridge bearings for multi-girder bridge types are typically subjected to vertical load, rotation about one axis, and longitudinal thermal movement
Source: ibubblbis.pages.dev Bridge Bearings Design, Supply & Installation in the UK , or bolts connect the bearing to the substructure unit Bridge bearings for multi-girder bridge types are typically subjected to vertical load, rotation about one axis, and longitudinal thermal movement
Bridge pot bearing structure and types . Design of elastomeric bearings is typically the responsibility of the design engineer whereas for most high-load multi-rotational (HLMR) bearings the designer only performs a preliminary sizing for the purpose of providing sufficient space to accommodate the overall height of the bearing system and the footprint of the. Fuller descrip- tions of some bearing types, with illustrations, are given in Lee (Ref 1) and the Steel Designer's Manual(Ref 2).
Bridge pot bearing structure and types . This Guidance Note provides information on the types of bearings which are normally used in steel bridges The Steel Bridge Bearing Design Guide and Commentary summarizes these design requirements and provides software to aid in the design of a steel reinforced elastomeric bearing.
